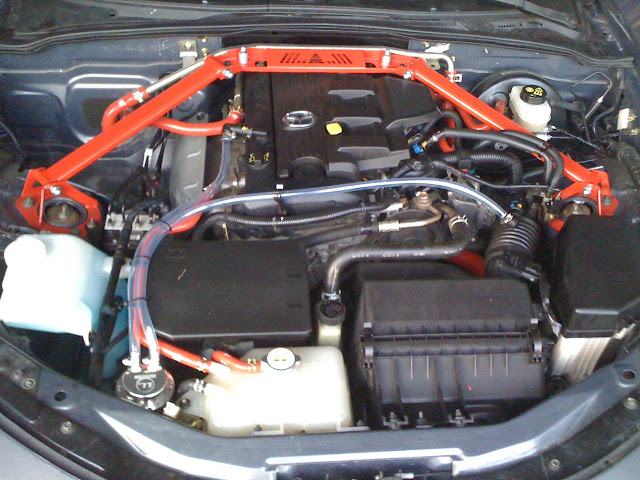

If you’re thinking that you are exempt because you have a brand new car, think again. This oil was collected over a 4 week period of aggressive driving including a track day. This is an example of what a catch can does. Some have mesh that only lets air pass while trapping particles, some are baffled and some have a combination of the two. Some are just empty cylinders with an inlet and an outlet and nothing else. Any oil, moisture and other contaminants that would normally come out of the PCV value and go into the intake manifold will now flow into the catch can first, and the job of the catch can is to prevent this crap from going back into your intake.Ĭatch cans have different designs. A catch can sits between your PCV valve and your intake manifold. Over time this sludge builds up and will kill performance.ĭirty engines are not happy engines. Over time this oil will coat the intake manifold, intake valves and the tops of the pistons. Most PCV systems will be redirected back into the intake manifold which means anything that escapes from the crank case will end up in your cylinders and this means that you’re burning oil. I won’t get into exactly how this works because that’s not the point here, but it’s important to note that it relies on vacuum from the intake manifold (or a source of vacuum in general). It also allows other things like moisture and fumes to be evacuated as well. This system allows the pressure that gets built up in the crankcase to be relieved. The 20-0337 Dual Catch Can Kit, 90-05 Mazda MX-5 is shown below.Engines have a positive crankcase ventilation system which everyone simply calls the PCV. The 20-0336 Catch Can K it, 90-05 Mazda MX-5 is shown below. Oil accumulation will occur in the intercooler which lowers the thermal efficiency properties of the heat exchanger and leads to decreased performance. This would normally lead to oil and sludge accumulation in the air filter intake pipe. At low loads it experiences atmospheric pressure, but when the engine is at high load (WOT), this hose will experience high flow out of the crankcase. When using the catch can on the crankcase side, it runs inline with the crankcase breather port. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run. Note: Because the Radium catch cans are pressure sealed, they are great for this boosted application so intake manifold connection is permitted. Conversely, the PCV hose will experience "metered" vacuum when the engine is idling, steady state cruising, and decelerating. When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valve closes and, thus, this hose experiences no flow. When using the catch can on the PCV side, it runs inline with the PCV (positive crankcase ventilation) valve and retains it's factory function. If purchasing the dual catch can kit, all engine breather ports will be isolated for optimal performance. If purchasing the single catch can kit, there is enough components to plumb it to the PCV or the crankcase side of the engine (see below for more info). No cutting, drilling or permanent modification to the vehicle is required. The dipsticks built into the catch cans allow easy inspection of accumulated fluid. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin. A closed loop system also promotes negative crankcase pressure for optimal performance. This closed loop system removes oil and sludge from the PCV gasses before it is routed to the engine to be burned. The kits are not designed for vent-to-atmosphere (VTA), thus are emissions and track legal. Reference the installation pictures before ordering. NOTE: the factory air intake box cannot be used with these kits. They mount using OEM holes and integrate perfectly with the surrounding components. These Radium catch can kits are compatible with 1990-2005 Mazda MX-5 Miata with both the 1.6L and 1.8L engines. Excessive oil collection can be an indicator of a damaged engine. Prevents oil buildup in the intake and intercooler system walls, throttle body, intake manifold, etc. Effectively raises the octane and increased engine performance from cleaner inlet air Excess oil saturated air circulating back into the air intake stream can lead to degraded performance. Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick.
#HOW TO INSTALL OIL CATCH CAN IN MIATA DOWNLOAD#
Click here to download installation instructions (PDF)Īn oil catch can is essential on a performance vehicle to protect the engine from elevated levels of crankcase blow-by accumulated from high performance driving.
